Type T-Triplex

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

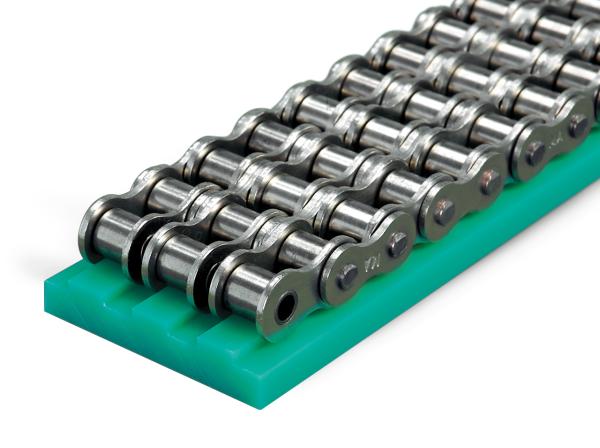

Type T-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Ketting-nr. DIN 8187 Kettingafmeting in duim B H b h 2e+b Artikelnummer CAD
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 06B-3 3/8" x 7/32" 35 10 5.3 1.5 25.9 221010038
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 08B-3 1/2" x 5/16" 45 10 7.1 2.2 34.9 221010039
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 10B-3 5/8" x 3/8" 55 10 8.9 2.6 42.1 221010040
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 12B-3 3/4" x 7/16" 60 15 10.7 2.4 49.7 221010041
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 16B-3 1" x 17 mm 79.5 20 15.7 3.5 79.5 221010042
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 20B-3 1 1/4" x 3/4" 91 20 18 4.2 91 221010043
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) 24B-3 1 1/2" x 1" 120 25 23.4 5.5 120 221010044
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 06B-3 3/8" x 7/32" 35 10 5.3 1.5 25.9 221010138
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 08B-3 1/2" x 5/16" 45 10 7.1 2.2 34.9 221010139
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 10B-3 5/8" x 3/8" 55 10 8.9 2.6 42.1 221010140
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 12B-3 3/4" x 7/16" 60 15 10.7 2.4 49.7 221010141
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 16B-3 1" x 17 mm 79.5 20 15.7 3.5 79.5 221010142
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" 91 20 18 4.2 91 221010143
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) 24B-3 1 1/2" x 1" 120 25 23.4 5.5 120 221010144
Werkstoff "S"® 1000 S-profiel (2000 mm) 06B-3 3/8" x 7/32" 35 10 5.3 1.5 25.9 221020038
Werkstoff "S"® 1000 S-profiel (2000 mm) 08B-3 1/2" x 5/16" 45 10 7.1 2.2 34.9 221020039
Werkstoff "S"® 1000 S-profiel (2000 mm) 10B-3 5/8" x 3/8" 55 10 8.9 2.6 42.1 221020040
Werkstoff "S"® 1000 S-profiel (2000 mm) 12B-3 3/4" x 7/16" 60 15 10.7 2.4 49.7 221020041
Werkstoff "S"® 1000 S-profiel (2000 mm) 16B-3 1" x 17 mm 79.5 20 15.7 3.5 79.5 221020042
Werkstoff "S"® 1000 S-profiel (2000 mm) 20B-3 1 1/4" x 3/4" 91 20 18 4.2 91 221020043
Werkstoff "S"® 1000 S-profiel (2000 mm) 24B-3 1 1/2" x 1" 120 25 23.4 5.5 120 221020044
Werkstoff "S"® 1000 S-profiel (vaste lengte) 06B-3 3/8" x 7/32" 35 10 5.3 1.5 25.9 221020138
Werkstoff "S"® 1000 S-profiel (vaste lengte) 08B-3 1/2" x 5/16" 45 10 7.1 2.2 34.9 221020139
Werkstoff "S"® 1000 S-profiel (vaste lengte) 10B-3 5/8" x 3/8" 55 10 8.9 2.6 42.1 221020140
Werkstoff "S"® 1000 S-profiel (vaste lengte) 12B-3 3/4" x 7/16" 60 15 10.7 2.4 49.7 221020141
Werkstoff "S"® 1000 S-profiel (vaste lengte) 16B-3 1" x 17 mm 79.5 20 15.7 3.5 79.5 221020142
Werkstoff "S"® 1000 S-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" 91 20 18 4.2 91 221020143
Werkstoff "S"® 1000 S-profiel (vaste lengte) 24B-3 1 1/2" x 1" 120 25 23.4 5.5 120 221020144

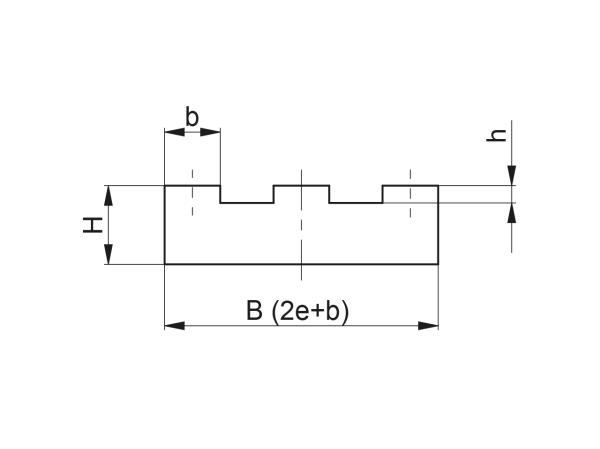

Type T-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

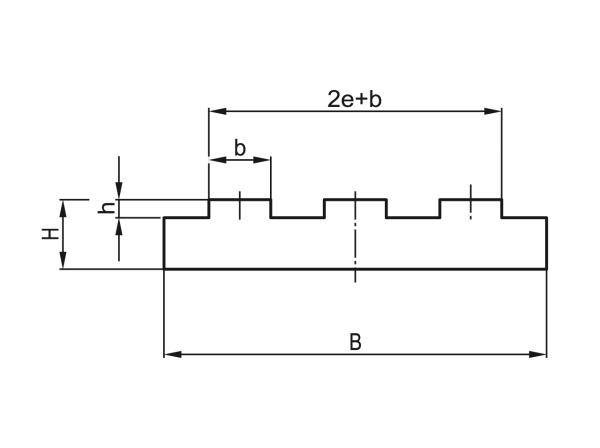

Type T-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2
