Type T-Duplex

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

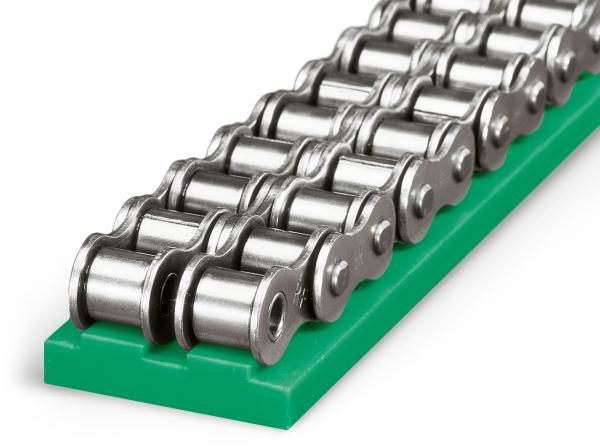

Type T-Duplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Ketting-nr. DIN 8187 Kettingafmeting in duim B H b h e+b Artikelnummer CAD
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221150020
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221150021
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221150022
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221150023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221150024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221150025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221150026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221150027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221150028
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221060010
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221060011
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221060012
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221060013
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221060014
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221060015
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221060016
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221060017
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221060018
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221150120
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221150121
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221150122
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221150123
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221150124
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221150125
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221150126
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221150127
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221150128
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.3 1.5 15.6 221010025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221010026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221010027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221010028
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221010029
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221010030
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221010031
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221010032
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221010033
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221010034
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221010035
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221010036
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221010037
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221010125
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221010126
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221010127
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221010128
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221010129
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221010130
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221010131
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221010132
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221010133
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221010134
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221010135
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221010136
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221010137
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221020025
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221020026
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221020027
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221020028
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221020029
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221020030
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221020031
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221020032
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221020033
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221020034
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221020035
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221020036
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221020037
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221020125
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221020126
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221020127
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221020128
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221020129
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221020130
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221020131
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221020132
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221020133
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221020134
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221020135
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221020136
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221020137

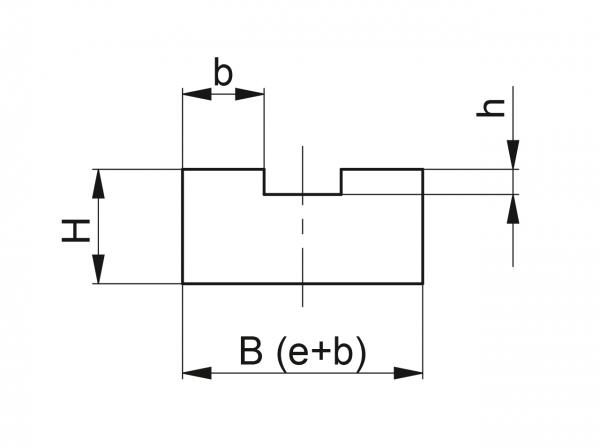

Type T-Duplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

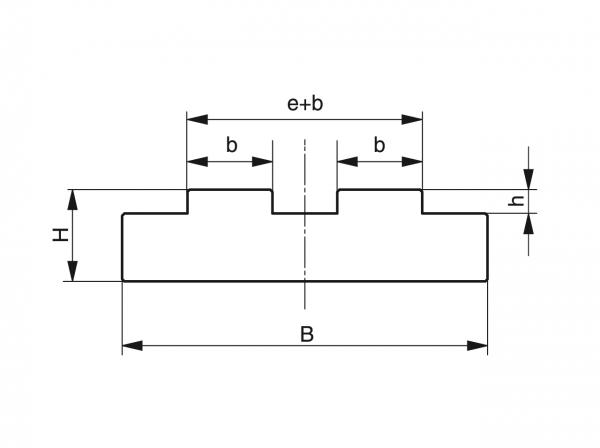

Type T-Duplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • from 16B-2
