Type KR

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie Toepassing in sectoren met explosierisico

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

Type KR - Riemgeleidingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Riemtype/bxh B H b h Artikelnummer CAD
S-profiel (2000 mm) 8 x 5 20 10 6 3.5 231010005
S-profiel (2000 mm) 10 x 6 20 10 7.2 4.5 231010006
S-profiel (2000 mm) 13 x 8 20 12 9.2 6 231010007
S-profiel (2000 mm) 17 x 11 30 15 11.5 8 231010008
S-profiel (2000 mm) 20 x 12,5 30 20 13.5 9 231010009
S-profiel (2000 mm) 22 x 14 35 20 14.5 10.5 231010010
S-profiel (2000 mm) 25 x 16 40 25 16.5 12 231010011
S-profiel (2000 mm) 32 x 20 50 30 21 16 231010012
S-profiel (2000 mm) 40 x 25 60 35 26 21 231010013
S-profiel (vaste lengte) 8 x 5 20 10 6 3.5 231010105
S-profiel (vaste lengte) 10 x 6 20 10 7.2 4.5 231010106
S-profiel (vaste lengte) 13 x 8 20 12 9.2 6 231010107
S-profiel (vaste lengte) 17 x 11 30 15 11.5 8 231010108
S-profiel (vaste lengte) 20 x 12,5 30 20 13.5 9 231010109
S-profiel (vaste lengte) 22 x 14 35 20 14.5 10.5 231010110
S-profiel (vaste lengte) 25 x 16 40 25 16.5 12 231010111
S-profiel (vaste lengte) 32 x 20 50 30 21 16 231010112
S-profiel (vaste lengte) 40 x 25 60 35 26 21 231010113

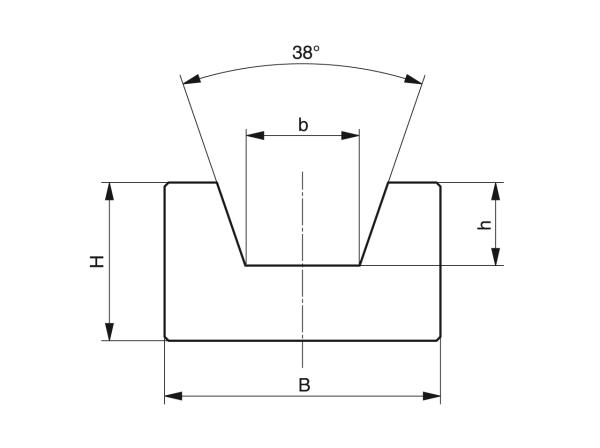

Type KR - Riemgeleidingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
