Spann-Boy® TS arc segment profile

Characteristics

Steel housing Track profile U profile for chains with 15mm overall width Two pre-tensioned compression springs with 40mm tension distance 60mm adjustment range

Your selection

Selected variant

Articles for selection:

Total articles:

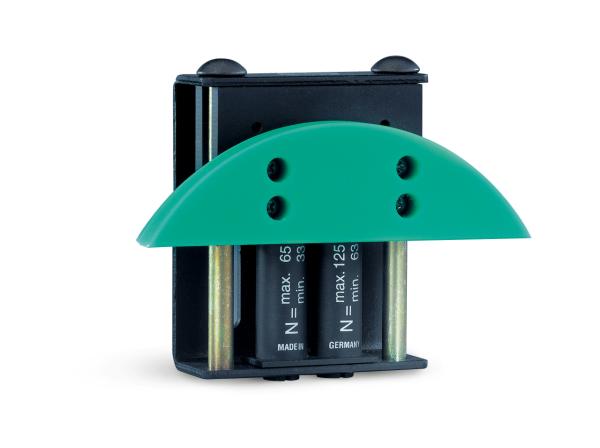

Spann-Boy® TS arc segment profile - Chain tensioners for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Chain no. DIN 8187 B a Article ID CAD
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 20 10 291060001
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 20 17.9 291060003
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 20 16.45 291060005
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 20 15.75 291060007
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 20 14.35 291060009
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 20 7.85 291060011
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 32 15.15 291060013
Painted steel DIN 8188 (ASA/JIS) DIN 8188 - 06C-3 (ASA/JIS 35-3) 32 10.8 291060017
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 20 10 292060002
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 20 17.9 292060004
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 20 16.45 292060006
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 20 15.75 292060008
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 20 14.35 292060010
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 20 7.85 292060012
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 32 15.15 292060014
Stainless steel (V2A) DIN 8188 (ASA/JIS) DIN 8188 - 06C-3 (ASA/JIS 35-3) 32 10.8 292060018
Painted steel DIN 8187 DIN 8187 - ≤ 06B-1 (U-Profil) 20 10 281060001
Painted steel DIN 8187 DIN 8187 - 08B-1 20 16.5 281060003
Painted steel DIN 8187 DIN 8187 - 10B-1 20 15.6 281060005
Painted steel DIN 8187 DIN 8187 - 12B-1 20 14.8 281060007
Painted steel DIN 8187 DIN 8187 - 06B-2 20 7.5 281060009
Painted steel DIN 8187 DIN 8187 - 08B-2 32 15.2 281060011
Painted steel DIN 8187 DIN 8187 - 10B-2 32 11.3 281060013
Painted steel DIN 8187 DIN 8187 - 05B-3 20 7.4 281060015
Painted steel DIN 8187 DIN 8187 - 06B-3 32 9.4 281060017
Stainless steel (V2A) DIN 8187 DIN 8187 - ≤ 06B-1 (U-Profil) 20 10 282060002
Stainless steel (V2A) DIN 8187 DIN 8187 - 08B-1 20 16.5 282060004
Stainless steel (V2A) DIN 8187 DIN 8187 - 10B-1 20 15.6 282060006
Stainless steel (V2A) DIN 8187 DIN 8187 - 12B-1 20 14.8 282060008
Stainless steel (V2A) DIN 8187 DIN 8187 - 06B-2 20 7.5 282060010
Stainless steel (V2A) DIN 8187 DIN 8187 - 08B-2 32 15.2 282060012
Stainless steel (V2A) DIN 8187 DIN 8187 - 10B-2 32 11.3 282060014
Stainless steel (V2A) DIN 8187 DIN 8187 - 05B-3 20 7.4 282060016
Stainless steel (V2A) DIN 8187 DIN 8187 - 06B-3 32 9.4 282060018

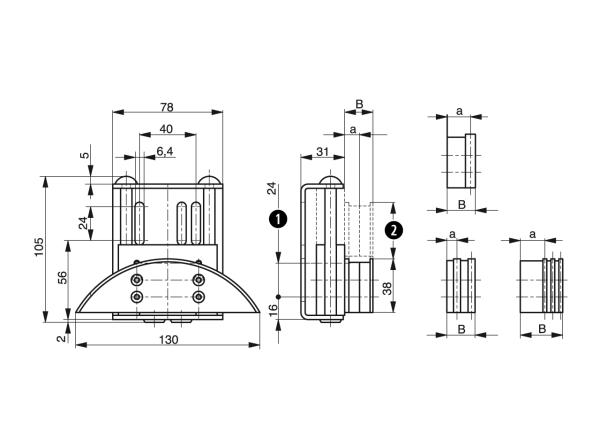

Spann-Boy® TS arc segment profile - Chain tensioners for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

  • Attachment

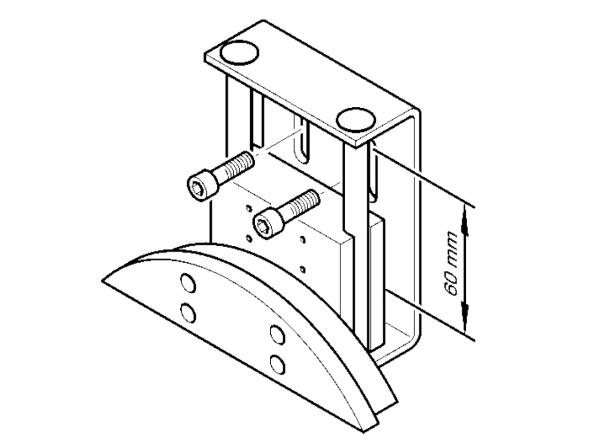

Spann-Boy® TS arc segment profile - Chain tensioners for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • 1) Elongated hole
  • 2) Tension distance
