H profile HR 2020

Your selection

Selected variant

Articles for selection:

Total articles:

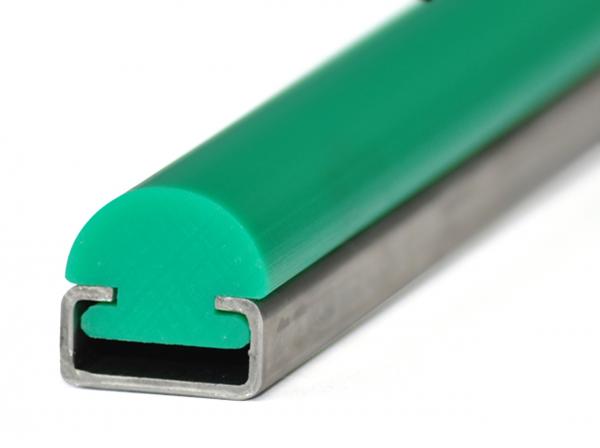

H profile HR 2020 - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Rail profile Delivery length in mm C profile Production method Original Material "S"® Art.-No. C-Profile Article ID CAD
Galvanized steel C profile (2,000mm) H profile HR 2020 2000 C3 Milled green 351020003 211210001
Galvanized steel C profile (2,000mm) H profile HR 2020 2000 C3 Milled Black antistatic 351020003 211210002
Galvanized steel C profile (2,000mm) H profile HR 2020 2000 C3 Extruded green 351020003 211210003
Galvanized steel C profile (6,000mm) H profile HR 2020 2000 C3 Milled green 351060003 211210001
Galvanized steel C profile (6,000mm) H profile HR 2020 2000 C3 Milled Black antistatic 351060003 211210002
Galvanized steel C profile (6,000mm) H profile HR 2020 2000 C3 Extruded green 351060003 211210003
Galvanized steel C profile (fixed length) H profile HR 2020 2000 C3 Milled green 351090003 211210001
Galvanized steel C profile (fixed length) H profile HR 2020 2000 C3 Milled Black antistatic 351090003 211210002
Galvanized steel C profile (fixed length) H profile HR 2020 2000 C3 Extruded green 351090003 211210003
Stainless steel (V2A) C profile (2,000mm) H profile HR 2020 2000 C3 Milled green 351020103 211210001
Stainless steel (V2A) C profile (2,000mm) H profile HR 2020 2000 C3 Milled Black antistatic 351020103 211210002
Stainless steel (V2A) C profile (2,000mm) H profile HR 2020 2000 C3 Extruded green 351020103 211210003
Stainless steel (V2A) C profile (6,000mm) H profile HR 2020 2000 C3 Milled green 351060103 211210001
Stainless steel (V2A) C profile (6,000mm) H profile HR 2020 2000 C3 Milled Black antistatic 351060103 211210002
Stainless steel (V2A) C profile (6,000mm) H profile HR 2020 2000 C3 Extruded green 351060103 211210003
Stainless steel (V2A) C profile (fixed length) H profile HR 2020 2000 C3 Milled green 351090103 211210001
Stainless steel (V2A) C profile (fixed length) H profile HR 2020 2000 C3 Milled Black antistatic 351090103 211210002
Stainless steel (V2A) C profile (fixed length) H profile HR 2020 2000 C3 Extruded green 351090103 211210003

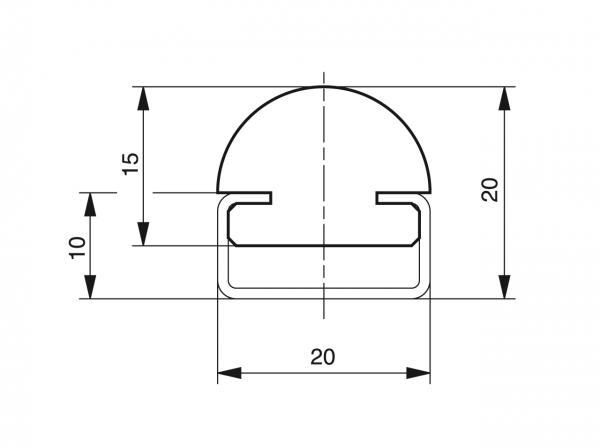

H profile HR 2020 - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

  • Mushroom profile HR 2020
