Typ K

Geschlossene Kettengleitschiene für Rollenketten

Eigenschaften

Toleranz am Kunstoff-Profilquerschnitt Längentoleranz

Ihre Auswahl

Gewählte Variante

Artikel zur Auswahl:

Gesamtartikel:

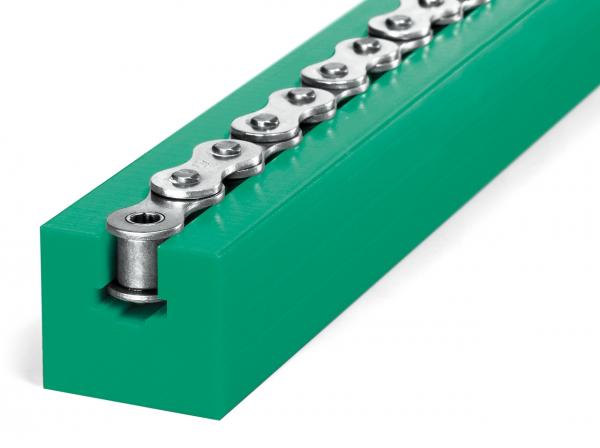

Typ K - Standardkettenführungen für Rollenketten - Murtfeldt GmbH Kunststoffe - Abbildung 1

Für die vollständige Ansicht dieses Produktbereichs wählen Sie bitte die Desktop-Darstellung.

Für die vollständige Ansicht dieses Produktbereich wechseln Sie bitte zum Querformat Ihres Tablets.

Ketten-Nr. Kettenabmessung in Zoll B H d1 d2 g h1 h2 h3 Artikelnummer CAD
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 25 5.3 4.5 10 4.4 7.8 9.3 221150039
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 25 30 8.3 5 13.2 7.4 11.7 13.4 221150040
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 30 35 10.7 6.4 16.5 8.8 14.5 16.2 221150041
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 35 40 12.5 7.4 19.8 11.8 18.5 20.5 221150042
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 45 16.7 9.9 26.5 14.8 23.5 25.6 221150043
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 50 50 20 11.9 33.1 17.8 28.7 31.2 221150044
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 60 60 23.3 13.9 39.8 23.7 36.9 39.6 221150045
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 65 60 26.7 15.9 46.4 23.7 38.9 41.7 221150046
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 75 70 30 17.8 53 29.7 47 50.5 221150047
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 25 5.3 4.5 10 4.4 7.8 9.3 221160021
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 25 30 8.3 5 13.2 7.4 11.7 13.4 221160022
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 30 35 10.7 6.4 16.5 8.8 14.5 16.2 221160023
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 35 40 12.5 7.4 19.8 11.8 18.5 20.5 221160024
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 45 16.7 9.9 26.5 14.8 23.5 25.6 221160025
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 50 50 20 11.9 33.1 17.8 28.7 31.2 221160026
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 60 60 23.3 13.9 39.8 23.7 36.9 39.6 221160027
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 65 60 26.7 15.9 46.4 23.7 38.9 41.7 221160028
Original Werkstoff "S" grün® S-Profil (3048 mm - 10 Fuss) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 75 70 30 17.8 53 29.7 47 50.5 221160029
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 25 5.3 4.5 10 4.4 7.8 9.3 221150139
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 25 30 8.3 5 13.2 7.4 11.7 13.4 221150140
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 30 35 10.7 6.4 16.5 8.8 14.5 16.2 221150141
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 35 40 12.5 7.4 19.8 11.8 18.5 20.5 221150142
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 45 16.7 9.9 26.5 14.8 23.5 25.6 221150143
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 50 50 20 11.9 33.1 17.8 28.7 31.2 221150144
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 60 60 23.3 13.9 39.8 23.7 36.9 39.6 221150145
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 65 60 26.7 15.9 46.4 23.7 38.9 41.7 221150146
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 75 70 30 17.8 53 29.7 47 50.5 221150147
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 3/8" x 5/32" 20 25 6.6 4 9.4 3.6 7 8 221110026
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 25 6.6 4 9.4 5.5 8.9 10 221110027
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 25 8 5 10.8 4.5 8 9.5 221110028
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 24 30 8 5 11.8 6.2 9.8 11.3 221110029
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 24 30 8.8 5 12.8 6.2 10.2 11.7 221110030
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 24 30 8.9 5 12.8 7.4 11.5 13 221110031
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 5/8" x 1/4" 30 30 10.6 6 15.4 6.2 10.2 11.6 221110032
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 30 35 10.6 6 15.4 9.3 13.5 14.9 221110033
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 40 35 12.4 7 17 11.3 15.9 17.5 221110034
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 45 16.4 10 24 16 25.7 27.7 221110035
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 50 50 20 11 28 18 29.5 31.7 221110036
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 60 27 16 36.6 24 38.2 41.2 221110037
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 60 70 30 17 41 30 47 49 221110038
Original Werkstoff "S" grün® S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 75 31 19 44.6 30 47.3 50 221110039
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 3/8" x 5/32" 20 25 6.6 4 9.4 3.6 7 8 221110126
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 25 6.6 4 9.4 5.5 8.9 10 221110127
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 25 8 5 10.8 4.5 8 9.5 221110128
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 24 30 8 5 11.8 6.2 9.8 11.3 221110129
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 24 30 8.8 5 12.8 6.2 10.2 11.7 221110130
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 24 30 8.9 5 12.8 7.4 11.5 13 221110131
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 5/8" x 1/4" 30 30 10.6 6 15.4 6.2 10.2 11.6 221110132
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 30 35 10.6 6 15.4 9.3 13.5 14.9 221110133
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 40 35 12.4 7 17 11.3 15.9 17.5 221110134
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 45 16.4 10 24 16 25.7 27.7 221110135
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 50 50 20 11 28 18 29.5 31.7 221110136
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 60 27 16 36.6 24 38.2 41.2 221110137
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 60 70 30 17 41 30 47 49 221110138
Original Werkstoff "S" grün® S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 75 31 19 44.6 30 47.3 50 221110139
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 3/8" x 5/32" 20 25 6.6 4 9.4 3.6 7 8 221120026
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 25 6.6 4 9.4 5.5 8.9 10 221120027
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 25 8 5 10.8 4.5 8 9.5 221120028
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 24 30 8 5 11.8 6.2 9.8 11.3 221120029
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 24 30 8.8 5 12.8 6.2 10.2 11.7 221120030
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 24 30 8.9 5 12.8 7.4 11.5 13 221120031
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 5/8" x 1/4" 30 30 10.6 6 15.4 6.2 10.2 11.6 221120032
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 30 35 10.6 6 15.4 9.3 13.5 14.9 221120033
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 40 35 12.4 7 17 11.3 15.9 17.5 221120034
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 45 16.4 10 24 16 25.7 27.7 221120035
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 50 50 20 11 28 18 29.5 31.7 221120036
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 60 27 16 36.6 24 38.2 41.2 221120037
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 60 70 30 17 41 30 47 49 221120038
Werkstoff "S"® 1000 S-Profil (2000 mm) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 75 31 19 44.6 30 47.3 50 221120039
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 3/8" x 5/32" 20 25 6.6 4 9.4 3.6 7 8 221120126
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 25 6.6 4 9.4 5.5 8.9 10 221120127
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 25 8 5 10.8 4.5 8 9.5 221120128
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 24 30 8 5 11.8 6.2 9.8 11.3 221120129
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 24 30 8.8 5 12.8 6.2 10.2 11.7 221120130
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 24 30 8.9 5 12.8 7.4 11.5 13 221120131
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 5/8" x 1/4" 30 30 10.6 6 15.4 6.2 10.2 11.6 221120132
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 30 35 10.6 6 15.4 9.3 13.5 14.9 221120133
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 40 35 12.4 7 17 11.3 15.9 17.5 221120134
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 45 16.4 10 24 16 25.7 27.7 221120135
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 50 50 20 11 28 18 29.5 31.7 221120136
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 60 27 16 36.6 24 38.2 41.2 221120137
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 60 70 30 17 41 30 47 49 221120138
Werkstoff "S"® 1000 S-Profil (Fixlänge) Profilquerschnitt 1-teilig DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 75 31 19 44.6 30 47.3 50 221120139

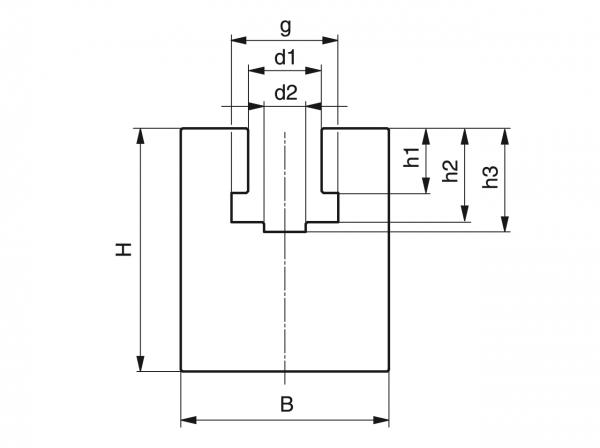

Typ K - Standardkettenführungen für Rollenketten - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
