Microspray

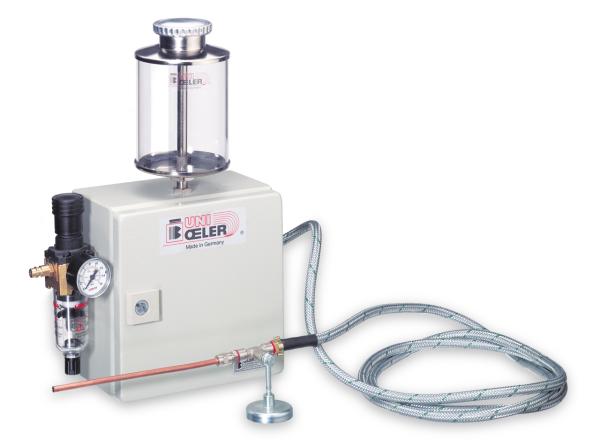

Microspray - UNI-Microspray - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Type Container Inhoud Elektrische aansluiting Beschermingsklasse Aantal pneumatische pulsgevers Aantal pomp Metaalmantel-coaxslang Artikelnummer CAD
Versie 1 Plexiglas 1000 ml 230 V, 50 Hz IP 65 1 1 2,5 m met straalbuis 313800001
Versie 2 Plexiglas 1000 ml 230 V, 50 Hz IP 65 1 2 2 x 2,5 m met straalbuis 313800002
Versie 3 Plexiglas 1000 ml 230 V, 50 Hz IP 65 2 2 2 x 2,5 m met straalbuis 313800003

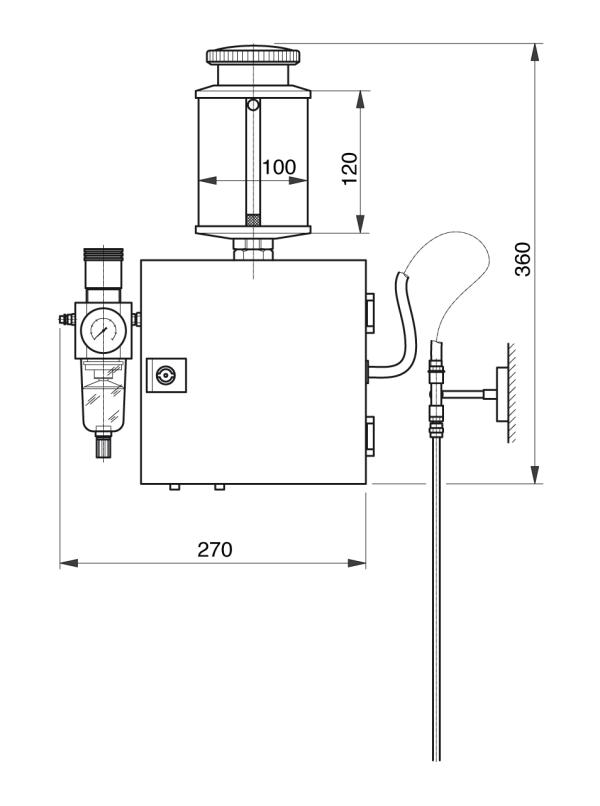

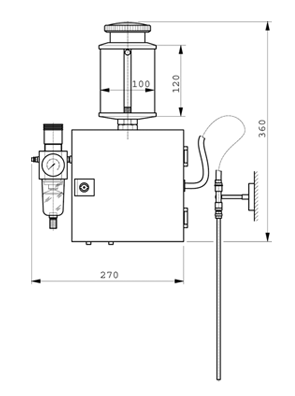

Microspray - UNI-Microspray - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

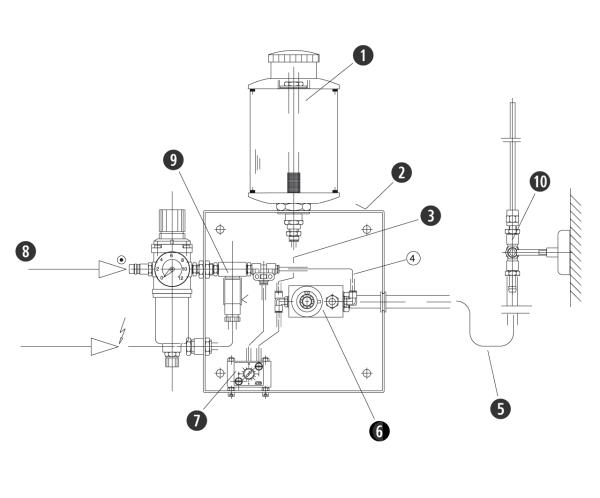

Microspray - UNI-Microspray - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2
