Staal-C-profielen

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

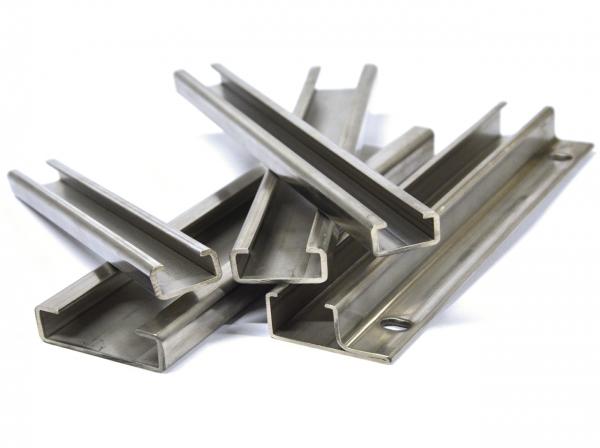

Staal-C-profielen - Staal-C-profielen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

C-profiel B b H s L p Artikelnummer CAD
gegalvaniseerd staal C profile (3,048mm 10 ft.) C1 24 5.2 17.5 1 - - 351120001
gegalvaniseerd staal C profile (3,048mm 10 ft.) C3 20 10 10 1.5 - - 351120003
gegalvaniseerd staal C profile (3,048mm 10 ft.) C4 50 10 35 2 - - 351120004
gegalvaniseerd staal C profile (3,048mm 10 ft.) C5 28 14 12 2 - - 351120005
gegalvaniseerd staal C profile (3,048mm 10 ft.) C6 80 10 65 2 - - 351120006
gegalvaniseerd staal C profile (3,048mm 10 ft.) C7 28 16 14 2.5 - - 351120007
gegalvaniseerd staal C profile (3,048mm 10 ft.) C9 38 22 18 2.5 - - 351120009
gegalvaniseerd staal C profile (3,048mm 10 ft.) C10 30 24 20 1.5 - - 351120010
gegalvaniseerd staal C profile (3,048mm 10 ft.) C11 45 40 31 2 - - 351120011
gegalvaniseerd staal C profile (3,048mm 10 ft.) C12 60 20 36 2.5 - - 351120012
gegalvaniseerd staal C profile (3,048mm 10 ft.) C13 65 55 40 3 - - 351120013
gegalvaniseerd staal C profile (3,048mm 10 ft.) C14H 31 25 20 2 47 200 mm 351120014
gegalvaniseerd staal C profile (3,048mm 10 ft.) C15V 31 25 20 2 53 200 mm 351120015
RVS (V2A) C profile (3,048mm 10 ft.) C1 24 5.2 17.5 1 - - 351120101
RVS (V2A) C profile (3,048mm 10 ft.) C3 20 10 10 1.5 - - 351120103
RVS (V2A) C profile (3,048mm 10 ft.) C4 50 10 35 2 - - 351120104
RVS (V2A) C profile (3,048mm 10 ft.) C5 28 12 14 2 - - 351120105
RVS (V2A) C profile (3,048mm 10 ft.) C6 80 10 65 2 - - 351120106
RVS (V2A) C profile (3,048mm 10 ft.) C7 28 16 14 2.5 - - 351120107
RVS (V2A) C profile (3,048mm 10 ft.) C9 38 22 18 2.5 - - 351120109
RVS (V2A) C profile (3,048mm 10 ft.) C10 30 24 20 1.5 - - 351120110
RVS (V2A) C profile (3,048mm 10 ft.) C11 45 40 31 2 - - 351120111
RVS (V2A) C profile (3,048mm 10 ft.) C12 60 20 36 2.5 - - 351120112
RVS (V2A) C profile (3,048mm 10 ft.) C13 65 55 40 3 - - 351120113
RVS (V2A) C profile (3,048mm 10 ft.) C14H 31 25 20 2 47 200 mm 351120114
RVS (V2A) C profile (3,048mm 10 ft.) C15V 31 25 20 2 53 200 mm 351120115
gegalvaniseerd staal C-profiel (2000 mm) C1 24 17.5 5.2 1 - 351020001
gegalvaniseerd staal C-profiel (2000 mm) C3 20 10 10 1.5 - 351020003
gegalvaniseerd staal C-profiel (2000 mm) C4 50 35 10 2 - 351020004
gegalvaniseerd staal C-profiel (2000 mm) C5 28 14 12 2 - 351020005
gegalvaniseerd staal C-profiel (2000 mm) C6 80 65 10 2 - 351020006
gegalvaniseerd staal C-profiel (2000 mm) C7 28 14 16 2.5 - 351020007
gegalvaniseerd staal C-profiel (2000 mm) C9 38 22 18 2.5 - 351020009
gegalvaniseerd staal C-profiel (2000 mm) C10 30 20 24 1.5 - 351020010
gegalvaniseerd staal C-profiel (2000 mm) C11 45 31 40 2 - 351020011
gegalvaniseerd staal C-profiel (2000 mm) C12 60 36 20 2.5 - 351020012
gegalvaniseerd staal C-profiel (2000 mm) C13 65 40 55 3 - 351020013
gegalvaniseerd staal C-profiel (2000 mm) C14 H 31 20 25 2 47 - 351020014
gegalvaniseerd staal C-profiel (2000 mm) C15 V 31 20 25 2 53 - 351020015
gegalvaniseerd staal C-profiel (3000 mm) C1 24 17.5 5.2 1 - 351030001
gegalvaniseerd staal C-profiel (3000 mm) C3 20 10 10 1.5 - 351030003
gegalvaniseerd staal C-profiel (3000 mm) C3 20 10 10 1.5 - 351030103
gegalvaniseerd staal C-profiel (3000 mm) C5 28 14 12 2 - 351030005
gegalvaniseerd staal C-profiel (3000 mm) C9 38 22 18 2.5 - 351030009
gegalvaniseerd staal C-profiel (3000 mm) C14 H 31 20 25 2 47 - 351030014
gegalvaniseerd staal C-profiel (3000 mm) C15 V 31 20 25 2 53 - 351030015
gegalvaniseerd staal C-profiel (6000 mm) C1 24 17.5 5.2 1 - 351060001
gegalvaniseerd staal C-profiel (6000 mm) C3 20 10 10 1.5 - 351060003
gegalvaniseerd staal C-profiel (6000 mm) C4 50 35 10 2 - 351060004
gegalvaniseerd staal C-profiel (6000 mm) C5 28 14 12 2 - 351060005
gegalvaniseerd staal C-profiel (6000 mm) C6 80 65 10 2 - 351060006
gegalvaniseerd staal C-profiel (6000 mm) C7 28 14 16 2.5 - 351060007
gegalvaniseerd staal C-profiel (6000 mm) C9 38 22 18 2.5 - 351060009
gegalvaniseerd staal C-profiel (6000 mm) C10 30 20 24 1.5 - 351060010
gegalvaniseerd staal C-profiel (6000 mm) C11 45 31 40 2 - 351060011
gegalvaniseerd staal C-profiel (6000 mm) C12 60 36 20 2.5 - 351060012
gegalvaniseerd staal C-profiel (6000 mm) C13 65 40 55 3 - 351060013
gegalvaniseerd staal C-profiel (6000 mm) C14 H 31 20 25 2 47 - 351060014
gegalvaniseerd staal C-profiel (6000 mm) C15 V 31 20 25 2 53 - 351060015
gegalvaniseerd staal C-profiel (vaste lengte) C1 24 17.5 5.2 1 - 351090001
gegalvaniseerd staal C-profiel (vaste lengte) C3 20 10 10 1.5 - 351090003
gegalvaniseerd staal C-profiel (vaste lengte) C4 50 35 10 2 - 351090004
gegalvaniseerd staal C-profiel (vaste lengte) C5 28 14 12 2 - 351090005
gegalvaniseerd staal C-profiel (vaste lengte) C6 80 65 10 2 - 351090006
gegalvaniseerd staal C-profiel (vaste lengte) C7 28 14 16 2.5 - 351090007
gegalvaniseerd staal C-profiel (vaste lengte) C9 38 22 18 2.5 - 351090009
gegalvaniseerd staal C-profiel (vaste lengte) C10 30 20 24 1.5 - 351090010
gegalvaniseerd staal C-profiel (vaste lengte) C11 45 31 40 2 - 351090011
gegalvaniseerd staal C-profiel (vaste lengte) C12 60 36 20 2.5 - 351090012
gegalvaniseerd staal C-profiel (vaste lengte) C13 65 40 55 3 - 351090013
gegalvaniseerd staal C-profiel (vaste lengte) C14 H 31 20 25 2 47 - 351090014
gegalvaniseerd staal C-profiel (vaste lengte) C15 V 31 20 25 2 53 - 351090015
Nongalvanized steel C-profiel (6000 mm) C3 20 10 10 1.5 - 351060203
Nongalvanized steel C-profiel (6000 mm) C5 28 14 12 2 - 351060205
Nongalvanized steel C-profiel (6000 mm) C7 28 14 16 2.5 - 351060207
Nongalvanized steel C-profiel (6000 mm) C9 38 22 18 2.5 - 351060209
Nongalvanized steel C-profiel (6000 mm) C10 30 20 24 1.5 - 351060210
Nongalvanized steel C-profiel (6000 mm) C11 45 31 40 2 - 351060211
Nongalvanized steel C-profiel (6000 mm) C15 V 31 20 25 2 53 - 351060215
Nongalvanized steel C-profiel (vaste lengte) C3 20 10 10 1.5 - 351090203
Nongalvanized steel C-profiel (vaste lengte) C5 28 14 12 2 - 351090205
Nongalvanized steel C-profiel (vaste lengte) C7 28 14 16 2.5 - 351090207
Nongalvanized steel C-profiel (vaste lengte) C9 38 22 18 2.5 - 351090209
Nongalvanized steel C-profiel (vaste lengte) C10 30 20 24 1.5 - 351090210
Nongalvanized steel C-profiel (vaste lengte) C11 45 31 40 2 - 351090211
Nongalvanized steel C-profiel (vaste lengte) C15 V 31 20 25 2 53 - 351090215
RVS (V2A) C-profiel (2000 mm) C1 24 17.5 5.2 1 - 351020101
RVS (V2A) C-profiel (2000 mm) C3 20 10 10 1.5 - 351020103
RVS (V2A) C-profiel (2000 mm) C4 50 35 10 2 - 351020104
RVS (V2A) C-profiel (2000 mm) C5 28 14 12 2 - 351020105
RVS (V2A) C-profiel (2000 mm) C6 80 65 10 2 - 351020106
RVS (V2A) C-profiel (2000 mm) C7 28 14 16 2.5 - 351020107
RVS (V2A) C-profiel (2000 mm) C9 38 22 18 2.5 - 351020109
RVS (V2A) C-profiel (2000 mm) C10 30 20 24 1.5 - 351020110
RVS (V2A) C-profiel (2000 mm) C11 45 31 40 2 - 351020111
RVS (V2A) C-profiel (2000 mm) C12 60 36 20 2.5 - 351020112
RVS (V2A) C-profiel (2000 mm) C13 65 40 55 3 - 351020113
RVS (V2A) C-profiel (2000 mm) C14 H 31 20 25 2 47 - 351020114
RVS (V2A) C-profiel (2000 mm) C15 V 31 20 25 2 53 - 351020115
RVS (V2A) C-profiel (3000 mm) C1 24 17.5 5.2 1 - 351030101
RVS (V2A) C-profiel (3000 mm) C5 28 14 12 2 - 351030105
RVS (V2A) C-profiel (3000 mm) C9 38 22 18 2.5 - 351030109
RVS (V2A) C-profiel (3000 mm) C14 H 31 20 25 2 47 - 351030114
RVS (V2A) C-profiel (3000 mm) C15 V 31 20 25 2 53 - 351030115
RVS (V2A) C-profiel (6000 mm) C1 24 17.5 5.2 1 - 351060101
RVS (V2A) C-profiel (6000 mm) C3 20 10 10 1.5 - 351060103
RVS (V2A) C-profiel (6000 mm) C4 50 35 10 2 - 351060104
RVS (V2A) C-profiel (6000 mm) C5 28 14 12 2 - 351060105
RVS (V2A) C-profiel (6000 mm) C6 80 65 10 2 - 351060106
RVS (V2A) C-profiel (6000 mm) C7 28 14 16 2.5 - 351060107
RVS (V2A) C-profiel (6000 mm) C9 38 22 18 2.5 - 351060109
RVS (V2A) C-profiel (6000 mm) C10 30 20 24 1.5 - 351060110
RVS (V2A) C-profiel (6000 mm) C11 45 31 40 2 - 351060111
RVS (V2A) C-profiel (6000 mm) C12 60 36 20 2.5 - 351060112
RVS (V2A) C-profiel (6000 mm) C13 65 40 55 3 - 351060113
RVS (V2A) C-profiel (6000 mm) C14 H 31 20 25 2 47 - 351060114
RVS (V2A) C-profiel (6000 mm) C15 V 31 20 25 2 53 - 351060115
RVS (V2A) C-profiel (vaste lengte) C1 24 17.5 5.2 1 - 351090101
RVS (V2A) C-profiel (vaste lengte) C3 20 10 10 1.5 - 351090103
RVS (V2A) C-profiel (vaste lengte) C4 50 35 10 2 - 351090104
RVS (V2A) C-profiel (vaste lengte) C5 28 14 12 2 - 351090105
RVS (V2A) C-profiel (vaste lengte) C6 80 65 10 2 - 351090106
RVS (V2A) C-profiel (vaste lengte) C7 28 14 16 2.5 - 351090107
RVS (V2A) C-profiel (vaste lengte) C9 38 22 18 2.5 - 351090109
RVS (V2A) C-profiel (vaste lengte) C10 30 20 24 1.5 - 351090110
RVS (V2A) C-profiel (vaste lengte) C11 45 31 40 2 - 351090111
RVS (V2A) C-profiel (vaste lengte) C12 60 36 20 2.5 - 351090112
RVS (V2A) C-profiel (vaste lengte) C13 65 40 55 3 - 351090113
RVS (V2A) C-profiel (vaste lengte) C14 H 31 20 25 2 47 - 351090114
RVS (V2A) C-profiel (vaste lengte) C15 V 31 20 25 2 53 - 351090115

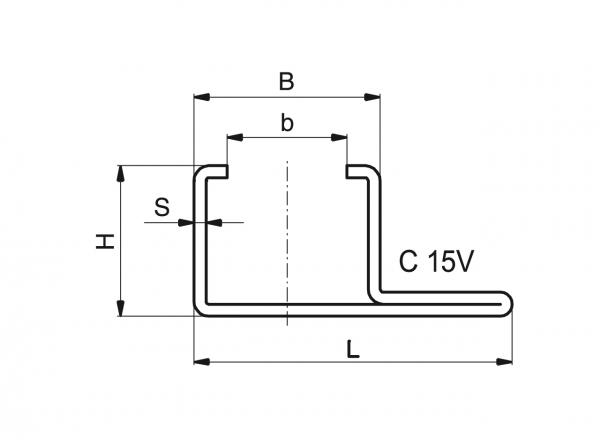

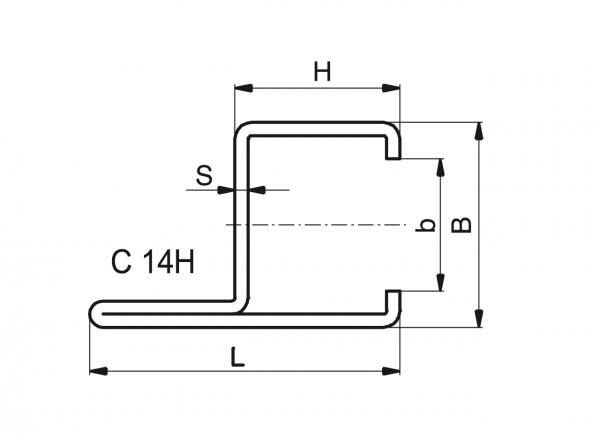

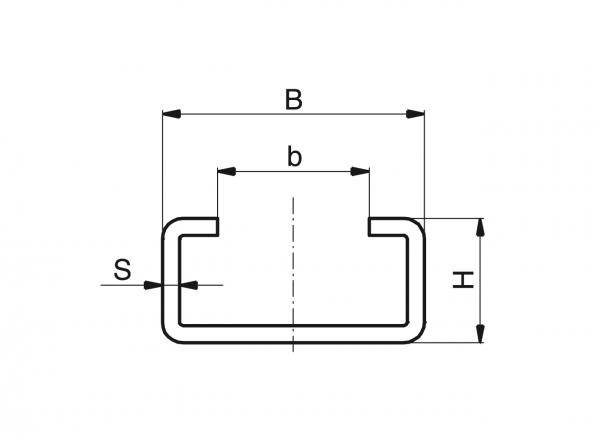

Staal-C-profielen - Staal-C-profielen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1


Staal-C-profielen - Staal-C-profielen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2


Staal-C-profielen - Staal-C-profielen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 3


Staal-C-profielen - Staal-C-profielen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 4

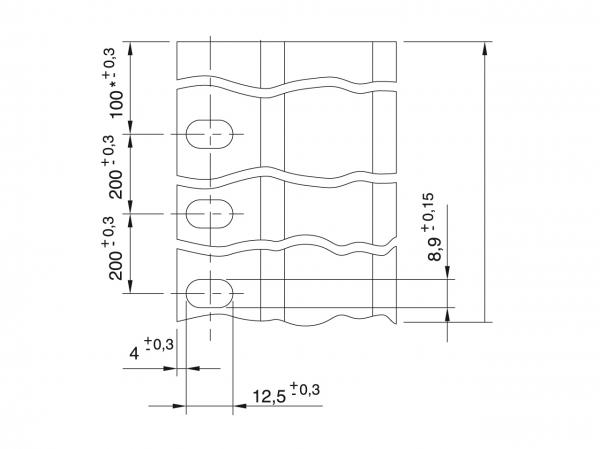

  • C 14H and C 15V steel profiles with punch hole in mounting rail
  • Hole spacing aggregate tolerance: Max. 0.75mm/m.
  • *Geldt alleen voor de uiteinden bij standaard profiellengtes 2000 mm, 3000 mm en 6000 mm. Voor het zagen van speciale lengtes gelden grotere toleranties.
