Type U

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

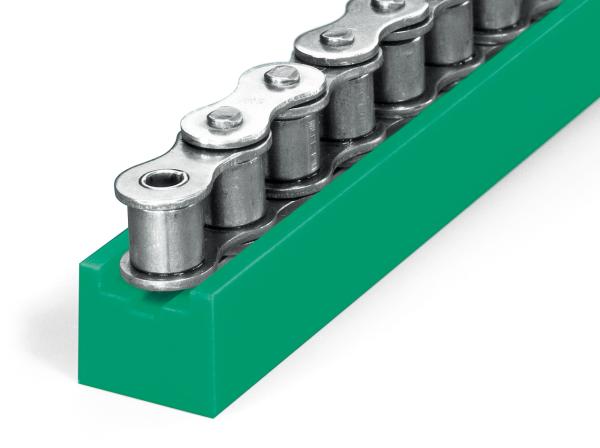

Type U - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Ketting-nr. DIN 8187 Kettingafmeting in duim B H d2 g h2 h3 Artikelnummer CAD
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221150029
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221150030
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221150031
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221150032
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221150033
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221150034
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221150035
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221150036
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221150037
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221150038
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221160011
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221160012
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221160013
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221160014
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221160015
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221160016
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221160017
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221160018
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221160019
Origineel Werkstoff "S"® groen. S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221160020
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221150129
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221150130
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221150131
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221150132
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221150133
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221150134
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221150135
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221150136
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221150137
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221150138
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221110012
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221110013
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221110014
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221110015
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221110017
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221110016
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 085-1 1/2 x 1/4" 20 15 5 11.8 3.2 4.7 221110018
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221110019
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221110020
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221110021
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221110022
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221110023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221110024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221110025
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221110112
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221110113
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221110114
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221110115
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221110117
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221110116
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 085-1 1/2 x 1/4" 20 15 5 11.8 3.2 4.7 221110118
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221110119
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221110120
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221110121
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221110122
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221110123
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221110124
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221110125
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221120012
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221120013
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221120014
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221120015
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221120017
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221120016
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 085-1 1/2 x 1/4" 20 15 5 11.8 3.2 4.7 221120018
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221120019
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221120020
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221120021
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221120022
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221120023
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221120024
Werkstoff "S"® 1000 S-profiel (2000 mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221120025
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221120112
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221120113
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221120114
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221120115
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221120117
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221120116
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 085-1 1/2 x 1/4" 20 15 5 11.8 3.2 4.7 221120118
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221120119
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221120120
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221120121
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221120122
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221120123
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221120124
Werkstoff "S"® 1000 S-profiel (vaste lengte) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221120125

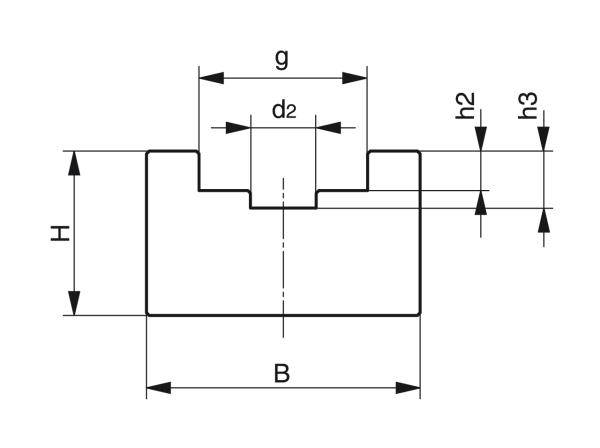

Type U - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
