Type CTU

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

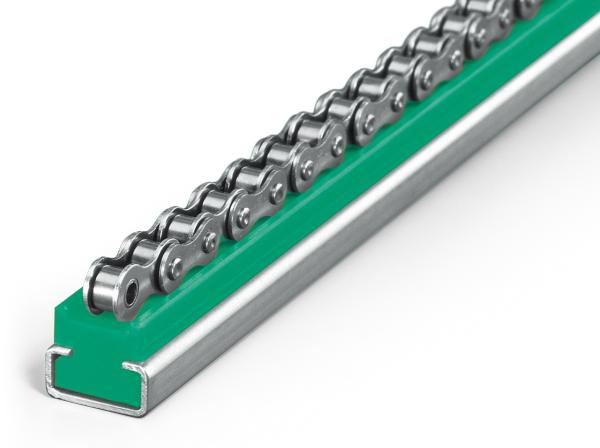

Type CTU - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Kettingen afmeting C-profiel B1 B2 H Hc b h Art.-Nr. C-Profiel Artikelnummer CAD
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351020003 221310010
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351060003 221310010
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351020103 221310010
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351060103 221310010
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351090003 221310110
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351090103 221310110
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351020003 221320010
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351060003 221320010
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351020103 221320010
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351060103 221320010
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351090003 221320110
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 3/8" x 5/32" + 1/2" x 3/16" (083-1) C3 17 20 14 17 12 2.2 351090103 221320110

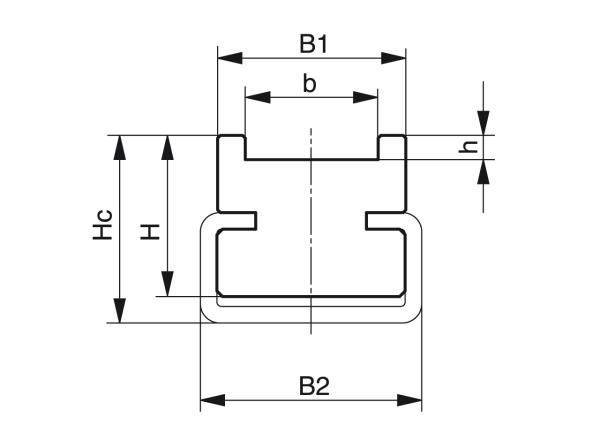

Type CTU - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
