Type CT-Triplex

Eigenschappen

Tolerantie bij de kunststof profieldiameter Lengtetolerantie

Uw keuze

Gekozen variant

Articles for selection:

Total articles:

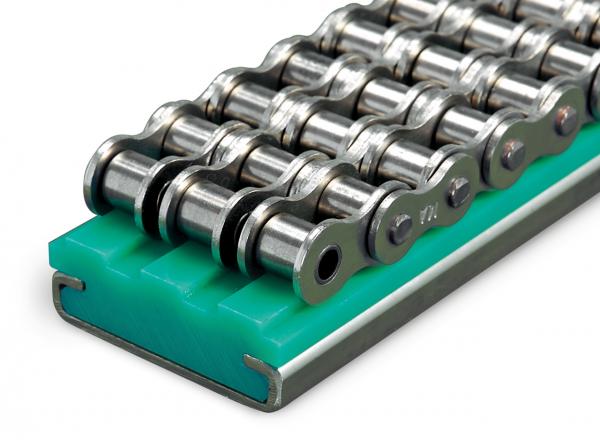

Type CT-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Abbildung 1

Kies a.u.b. de desktopweergave om dit productgedeelte volledig weer te geven.

Stap over op het dwarsformaat van uw tablet a.u.b. om dit productgedeelte volledig weer te geven.

Ketting-nr. DIN 8187 Kettingafmeting in duim C-profiel B1 B2 H Hc b h 2e+b Art.-Nr. C-Profiel Artikelnummer CAD
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020005 221210023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020005 221210024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020004 221210025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020004 221210026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020006 221210027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020006 221210028
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060005 221210023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060005 221210024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060004 221210025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060004 221210026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060006 221210027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060006 221210028
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020105 221210023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020105 221210024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020104 221210025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020104 221210026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020106 221210027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020106 221210028
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060105 221210023
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060105 221210024
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060104 221210025
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060104 221210026
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060106 221210027
Origineel Werkstoff "S"® groen. S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060106 221210028
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090005 221210123
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090005 221210124
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090004 221210125
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090004 221210126
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090006 221210127
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090006 221210128
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090105 221210123
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090105 221210124
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090104 221210125
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090104 221210126
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090106 221210127
Origineel Werkstoff "S"® groen. S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090106 221210128
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020005 221220023
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020005 221220024
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020004 221220025
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020004 221220026
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020006 221220027
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (2000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020006 221220028
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060005 221220023
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060005 221220024
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060004 221220025
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060004 221220026
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060006 221220027
Werkstoff "S"® 1000 S-profiel (2000 mm) gegalvaniseerd staal C-profiel (6000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060006 221220028
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020105 221220023
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020105 221220024
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020104 221220025
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020104 221220026
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020106 221220027
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (2000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020106 221220028
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060105 221220023
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060105 221220024
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060104 221220025
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060104 221220026
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060106 221220027
Werkstoff "S"® 1000 S-profiel (2000 mm) RVS (V2A) C-profiel (6000 mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060106 221220028
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090005 221220123
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090005 221220124
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090004 221220125
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090004 221220126
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090006 221220127
Werkstoff "S"® 1000 S-profiel (vaste lengte) gegalvaniseerd staal C-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090006 221220128
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090105 221220123
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090105 221220124
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090104 221220125
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090104 221220126
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090106 221220127
Werkstoff "S"® 1000 S-profiel (vaste lengte) RVS (V2A) C-profiel (vaste lengte) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090106 221220128

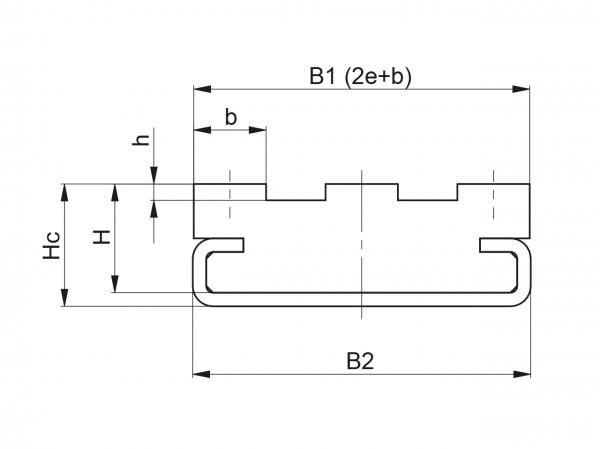

Type CT-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

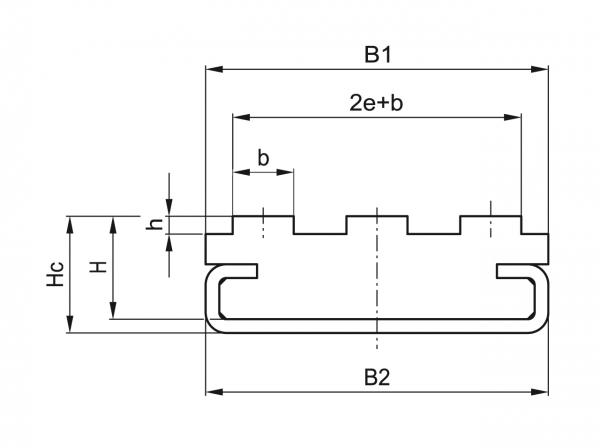

Type CT-Triplex - Kettinggeleidingen voor rollenkettingen - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • from 12B-3 to 20B-3
