Microspray

Microspray - UNI Microspray - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type Container Content Electrical connection Protection class No. of pneumatic cycle controllers No. of pumps Coaxial hose with metal cladding Article ID CAD
Version 1 Plexiglas 1000 ml 230 V, 50 Hz IP 65 1 1 2.5 m with nozzle pipe 313800001
Version 2 Plexiglas 1000 ml 230 V, 50 Hz IP 65 1 2 2 x 2.5 m with nozzle pipe 313800002
Version 3 Plexiglas 1000 ml 230 V, 50 Hz IP 65 2 2 2 x 2.5 m with nozzle pipe 313800003

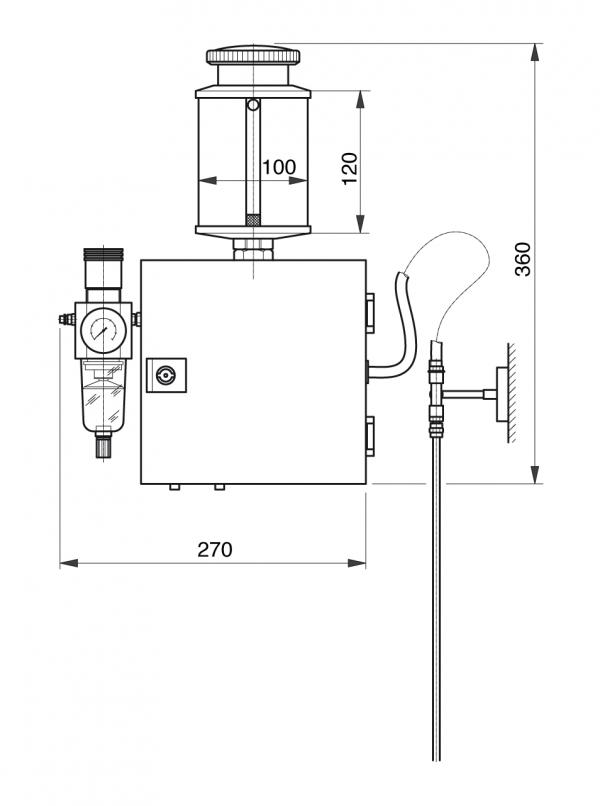

Microspray - UNI Microspray - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1


Microspray - UNI Microspray - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

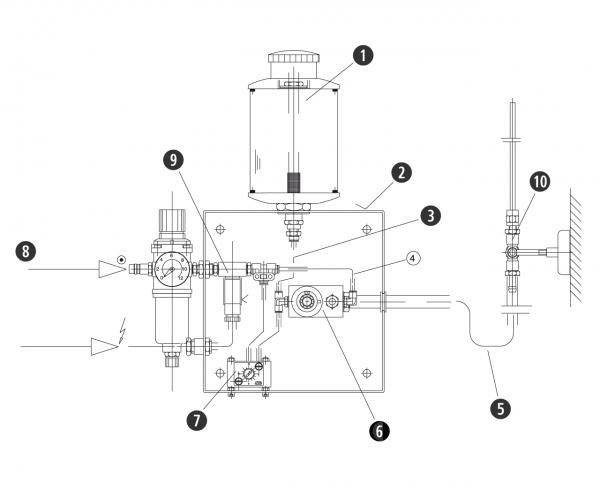

  • 1) Lubricant reservoir
  • 2) Casing (sealable)
  • 3) Lubricant hose
  • 4) Spray hose
  • 5) Metal-clad coaxial hose
  • 6) Micropump
  • 7) Frequency generator
  • 8) Pipe air feed
  • 9) Solenoid valve
  • 10) Nozzle with magnetic baseplate
  • 11) standard version 1
